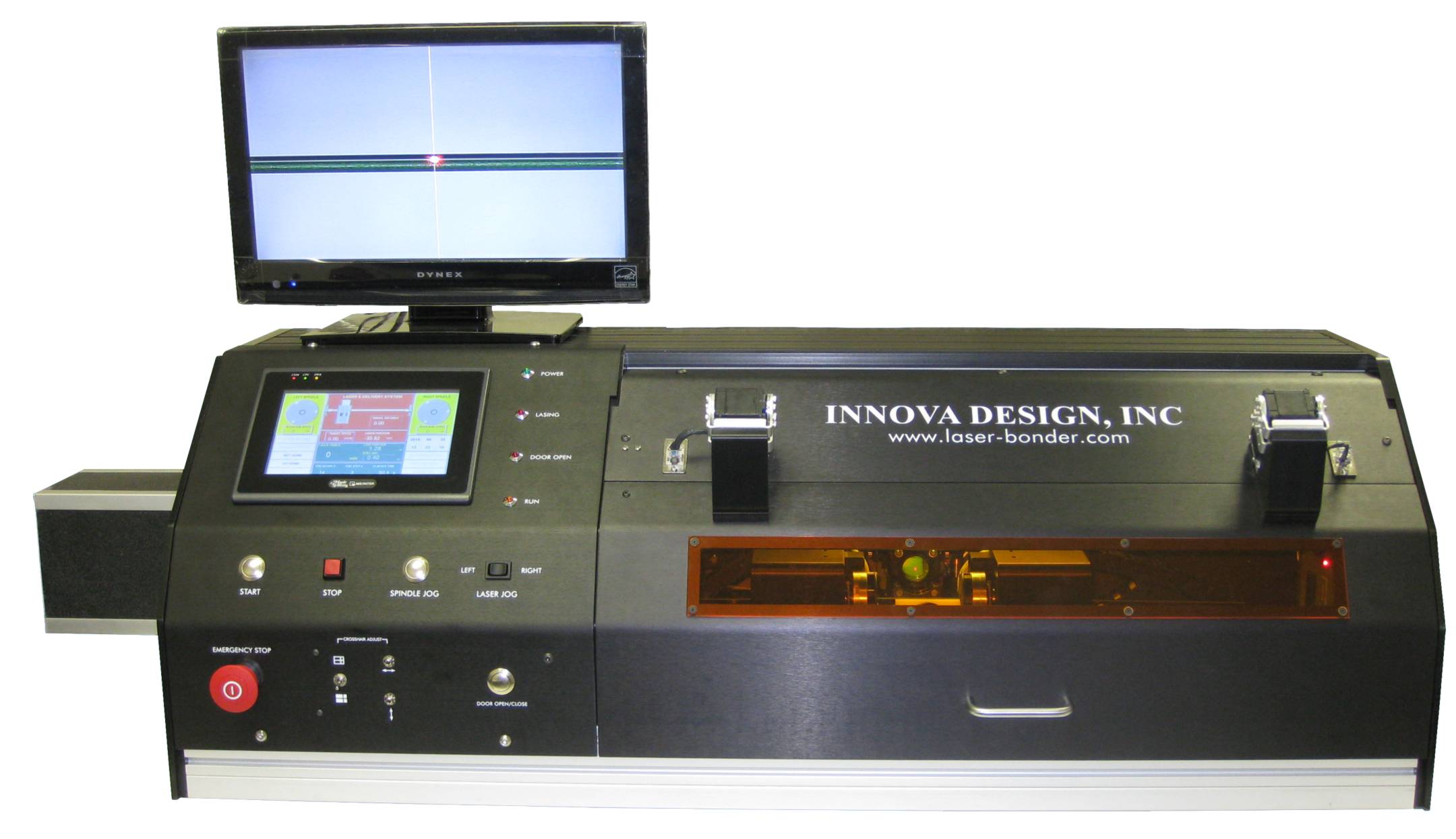

LBS4100
Everything You Need to Start Laser
Bonding
|
- Synrad CO2 Laser
- Red Diode Pointer
- Stackable Lens Tube Delivery System
- Dual Standard Spindles with 1500 RPM Max Rotational Speed
- Standard
Sample Holding Chucks
- Upgradable to Powered Chucks
- Laser Travel up to 250mm
|
- PLC Controlled
- Touch Screen HMI
- Very Easy to Program
- 500 Bonding Recipe Capacity
- Backup/Restore Recipe to USB
Drive
- Data Acquisition to PC
- Video Monitoring System
- Turn Key System
|
Brochure |
LBS4200
Production Workhorse
|
- All Featured as LBS4100
- Closed Loop Laser with Power
Stability <2%
- Real Time Power Display
- Electronic Beam shutter for
Enhanced safety and Stability Control
- Crosshair Generator
- Edit Recipe on PC
|
Brochure |
LBS4200P
Suitable for FEP Shrink Tubing
|
- Most Featured as LBS4100
- Closed Loop Laser with Power Stability <2%
- Real Time Power Display
- Electronic Beam shutter for Enhanced safety and Stability Control
- Crosshair Generator
- Parallel Beam Delivery System
- Edit Recipe on PC
|
Brochure |
LBS4300
Maximize Efficiency
|
- All Featured as LBS4200
- Motorized Focus Lens
- Programmable Spot Size
- Dual Advanced Direct Drive
Spindles
- Automatic Power Calibration
- Calibration Hardware
- Crosshair Generator
- Edit Recipe on PC
- Advanced Data Acquisition
|
Brochure |
NOTES:
1. Colors: silver
or black
2. Check Spindle and Chucks for various options |
