Products - LBS5000 Laser Bonders

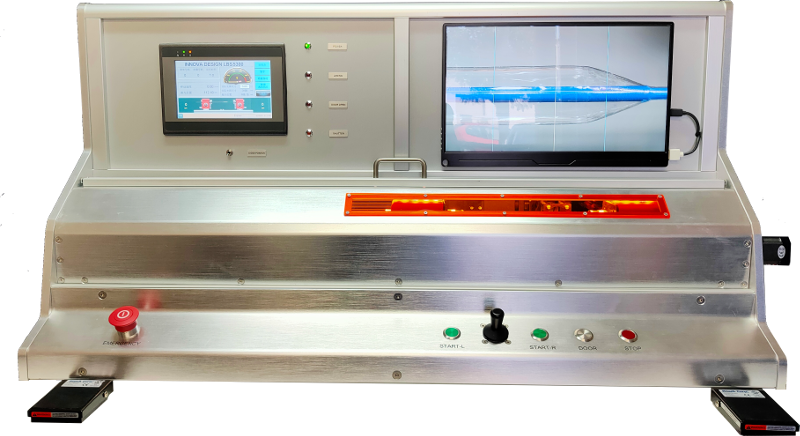

LBS5000 Laser Bonders


LBS5000

Brochure
LBS5100x
Parallel beam
  • Closed Loop Laser with Power Stability <2%
  • Red Diode Pointer
  • Parallel beam delivery system with adjustable mechanical slit
  • Dual Standard Spindles with 1500 RPM Max Rotational Speed
  • Standard Sample Holding Chucks
  • Upgradable to Powered Chucks
  • Laser Travel up to 250mm
  • PLC Controlled
  • Automatic safety door
  • Touch Screen HMI
  • Very Easy to Program
  • 500 Bonding Recipe Capacity
  • Backup/Restore Recipe to USB Drive
  • Data Acquisition to PC
  • Video Monitoring System with built-in 15" LCD monitor
  • 4-line crosshair
  • Turn Key System

Options
LBS5200x
Stackable tube focus lens system
  • All features for LBS5100 except
  • Parallel beam delivery system with adjustable mechanical slit

Options

LBS5300x
Programmable spot size
  • All Featured as LBS5100 except
  • Motorized Focus Lens
  • Programmable Spot Size

Options
NOTES:
1. x = A for sample moving and B for laser moving, MUST BE SPECIFIED AT THE TIME OF ORDERING
2. C
olor: silver
3
. Check Spindle and Chucks for various options
